Builder Elements

Custom elements are the easiest way to extend the functionality of the YOOtheme Pro page builder. Copy an existing element and customize its markup and settings, or create a new element from scratch.

Custom elements can be added to the page builder by using a child-theme or a Joomla plugin. The easiest way to add an element is by using a child theme. This is typically used for client projects. A Joomla plugin should be used when developing a third-party extension for YOOtheme Pro. Take a look at the extensions page to see what is available from the developer community.


Getting Started

The easiest way to get started is to try out the example element or take a look at the included YOOtheme Pro elements. Once the element is added to the page builder, it will appear under Custom in the element library.

Custom element in the element library

Example Element

The example element on Github demonstrates how to configure an element, extend its functionality and make use of the different field types. Simply download and unzip the element. The quickest way to try it out is using a child-theme.

Download View on Github

Included Elements

Included elements can be found in the respective module directory under vendor/yootheme in YOOtheme Pro.

Directory Elements
builder/elements accordion, alert, button, code, column, countdown, description_list, divider, gallery, grid, headline, html, icon, image, layout, list, map, overlay, panel, popover, quotation, row, section, slider, slideshow, social, subnav, switcher, table, text, totop, video
builder-newsletter/elements newsletter
builder-joomla/elements breadcrumbs, module, module_position
builder-wordpress/elements breadcrumbs, module, module_position
builder-joomla-source/elements pagination
builder-wordpress-source/elements comments, pagination

To create a new element by customizing an existing element, simply copy one of the included elements and give it a unique name in the element.json configuration.


File Structure

An element has its own directory with configuration and template files.

File Description
element.json Define the element configuration, fields and settings.
element.php Extend the element functionality with custom transforms or update functions. This file is optional and has to be imported through the element.json.
templates/template.php Render the element layout. The rendering is often split into template partials prefixed with template-.
templates/content.php Render the element content without layout-specific markup. The content is saved in the Joomla page. It's used by the Joomla search and remains when discontinuing using YOOtheme Pro.
images/icon.svg The icon shown in the element library
images/iconSmall.svg The icon shown in the page builder

JSON Configuration

The element.json defines the element's name, icons, fields and how the editing interface should look like inside the builder. Make sure to set a unique element name, for example my_element, that is not taken by an existing element. The following example shows a simple element configuration without any fields.

{
    "name": "example",
    "title": "Example",
    "icon": "${url:images/icon.svg}",
    "iconSmall": "${url:images/iconSmall.svg}",
    "element": true,
    "width": 500,
    "templates": {
        "render": "./templates/template.php",
        "content": "./templates/content.php"
    }
}
Property Description
name Name of the element. Must be unique.
title Label in the page builder
icon Path to the icon used in the element library
iconSmall Path to the icon used in the page builder
element Show element in the element library.
width Width of the customizer sidebar when editing the element
templates Paths to the two required template files

Group Property

By default custom elements are grouped under Custom in the element library. To create a dedicated group for elements, set the group property. This is recommended if elements are shared across different projects or when developing a third-party extension for YOOtheme Pro.

"group": "my company"

Element group in the element library


Fields

Fields of an element can be defined in the fields object in the element.json file. Just add a field name and its field definition.

"fields": {
    "my_field": {}
}

Additionally, set all fields in the default fieldset object to define their order and layout when editing the element in the page builder.

"fieldset": {
    "default": {
        "fields": [
            "my_field"
        ]
    }
}

Properties

Every field is defined by its type and further properties. The following properties are available for all field types.

Property Description
name Name of the field. When not set, inferred from the object property key.
type Set the field input type. By default it's text which displays an input field.
label Display a field label above the field.
description Display a field description below the field.
attrs Add additional HTML attributes to the rendered field.
show Show field only if a specific condition is met.
enable Enable field only if a specific condition is met.

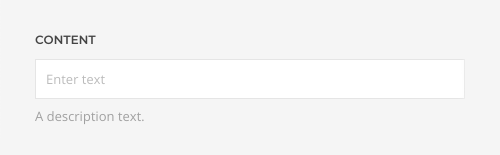

In the following example an input field named Content is shown.

"fields": {
    "content": {
        "label": "Content",
        "description": "A description text.",
        "attrs": {
            "placeholder": "Enter text"
        }
    }
},
"fieldset": {
    "default": {
        "fields": [
            "content"
        ]
    }
}

Field type text

In the following example the style option can only be selected if the content field is filled out. The icon picker is only shown if the content field is filled out and the style is set to primary.

"fields": {
    "content": {
        "label": "Content"
    },
    "style": {
        "label": "Style",
        "type": "select",
        "options": {
            "None": "",
            "Primary": "primary",
            "Secondary": "secondary"
        },
        "enable": "content"
    },
    "icon": {
        "label": "Icon",
        "type": "icon",
        "show": "content && style=='primary'"
    }
},
"fieldset": {
    "default": {
        "fields": [
            "content",
            "style",
            "icon"
        ]
    }
}

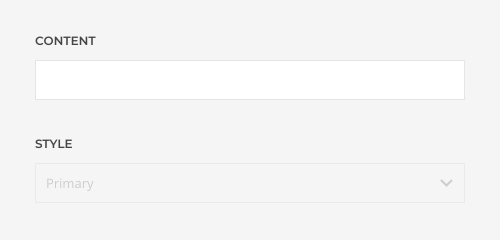

Enable or show fields

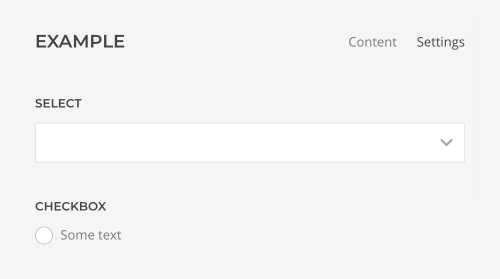

Tabs

Optionally, the fieldset object type can be set to tabs which defines different tabs in which the fields are shown. The following example has two tabs – Content and Settings. The Content tab includes the content field, and the Settings includes the two option fields.

"fields": {
    "content": {
        "label": "Content"
    },
    "option_a": {
        "label": "Select",
        "type": "select",
        "options": {
            "Option 1": 0,
            "Option 2": 1,
            "Option 3": 2
        }
    },
    "option_b": {
        "label": "Checkbox",
        "type": "checkbox",
        "text": "Some text"
    }
},
"fieldset": {
    "default": {
        "type": "tabs",
        "fields": [
            {
                "title": "Content",
                "fields": [
                    "content"
                ]
            },
            {
                "title": "Settings",
                "fields": [
                    "option_a",
                    "option_b"
                ]
            }
        ]
    }
}

Tabs with fields

Default Values

Fields can be set to a default value when the element is added to the page builder. Simply set the field key to the default value in the defaults object in the element.json file. In the following example the text field content will be filled out with Some default value..

"defaults": {
    "content": "Some default value."
},
"fields": {
    "content": {
        "label": "Content",
        "type": "textarea",
        "attrs": {
            "rows": 6
        }
    }
},
"fieldset": {
    "default": {
        "fields": [
            "content"
        ]
    }
}

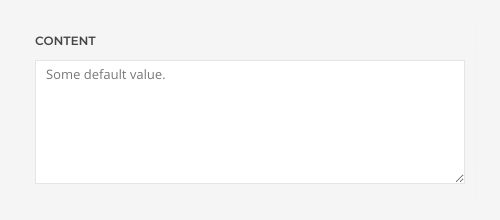

Field with default value

Preview Placeholder

Fields can show a placeholder in the page builder preview while it has no content. Once the field is filled out, the placeholder disappears, and the field value is shown. Simply set the field key to the placeholder value in the placeholder object under props in the element.json file. In the following example the element will show a Lorem ipsum placeholder text as long as the content field is not filled out.

"placeholder": {
    "props": {
        "content": "Lorem ipsum dolor sit amet, consectetur adipiscing elit."
    }
},
"fields": {
    "content": {
        "label": "Content",
        "type": "textarea",
        "attrs": {
            "rows": 6
        }
    }
},
"fieldset": {
    "default": {
        "fields": [
            "content"
        ]
    }
}

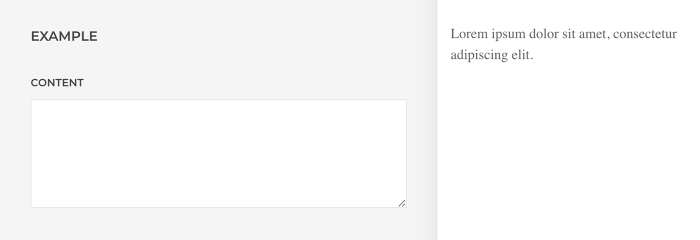

Field with placeholder

Interpolation Syntax

YOOtheme Pro comes with powerful interpolation syntax to reference values and to call functions. These interpolations are embedded within strings and wrapped in ${}, such as ${var.foo}.

For example, this is used for general element settings which are often the same across elements. Those fields are defined in the vendor/yootheme/builder/config/builder.json file. Their field definition can be referenced as ${builder.NAME}. The following example sets the field name maxwidth to the field definition defined in the builder.json file.

"fields": {
    "maxwidth": "${builder.maxwidth}"
},
"fieldset": {
    "default": {
        "fields": [
            "maxwidth"
        ]
    }
}

Here is the referenced field definition from the builder.json file.

"maxwidth": {
    "label": "Max Width",
    "description": "Set the maximum content width.",
    "type": "select",
    "options": {
        "None": "",
        "Small": "small",
        "Medium": "medium",
        "Large": "large",
        "X-Large": "xlarge",
        "2X-Large": "2xlarge"
    }
}

General element settings

Another example is the advanced settings tab which is also the same across all elements. The order and layout of these fields are also referenced from the builder.json file.

"fields": {
    "content": {
        "label": "Content",
        "type": "textarea"
    },
    "name": "${builder.name}",
    "source": "${builder.source}",
    "id": "${builder.id}",
    "status": "${builder.status}",
    "class": "${builder.cls}",
    "attributes": "${builder.attrs}",
    "css": {
        "type": "editor",
        "label": "CSS",
        "description": "Enter your own custom CSS.",
        "editor": "code",
        "mode": "css",
        "attrs": {
            "debounce": 500
        }
    }
},
"fieldset": {
    "default": {
        "type": "tabs",
        "fields": [
            {
                "title": "Content",
                "fields": [
                    "content"
                ]
            },
            "${builder.advanced}"
        ]
    }
}

Here is the referenced value from the builder.json file.

"advanced": {
    "title": "Advanced",
    "fields": [
        "name",
        "status",
        "source",
        "id",
        "class",
        "attributes",
        "css"
    ]
}

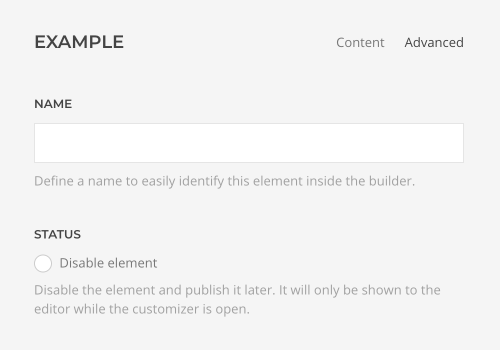

Advanced element settings


Dynamic Content

To add the dynamic content field which allows selecting a content source, reference the source fields from the builder.json file. Referencing the advanced settings tab as in example above also defines the source field.

"fields": {
    "source": "${builder.source}"
},
"fieldset": {
    "default": {
        "fields": [
            "source"
        ]
    }
}

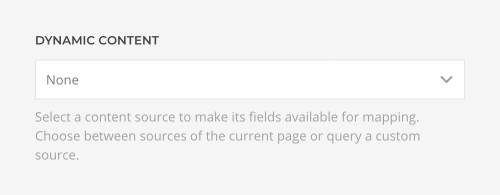

Dynamic content source fields

To allow a field to map dynamic content, set the field source property to true.

"fields": {
    "content": {
        "label": "Content",
        "description": "A text field that can be mapped to a field of a content source.",
        "source": true
    }
}

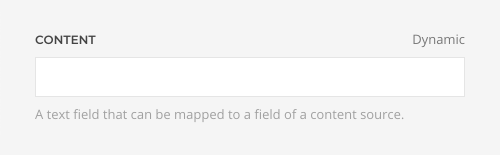

Dynamic content field mapping


Field Types

Here is a list of all available content field types in YOOtheme Pro.

Name Description
checkbox Define a checkbox.
color Define a color picker.
editor Define a visual and code editor.
font Define a font picker.
icon Define an icon picker for the UIkit icon library.
image Define an image picker for files in the media library.
link Define a link picker for Joomla system links and files in the media library.
location Define an interactive map to pick a location.
number Define a numerical input field.
radio Define a group of radio buttons.
range Define a range slider with an addition input field.
select Define a select box.
text Define an input field.
textarea Define a plain text area for multiple lines of text.
video Define a video picker for files in the media library.

Field types which have additional properties are described below.

Checkbox Field

The checkbox field has an additional property text to set the text next to the checkbox.

{
    "label": "Checkbox",
    "type": "checkbox",
    "text": "The text next to the checkbox."
}

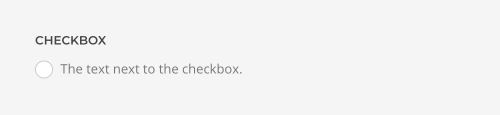

Field types checkbox

Editor Field

The editor field has an editor property which loads only the code editor when set to code. An additional mode property explicitly defines the code language css, js or text/html.

The following example shows an editor with the Visual and Code tabs.

{
    "label": "Editor",
    "type": "editor"
}

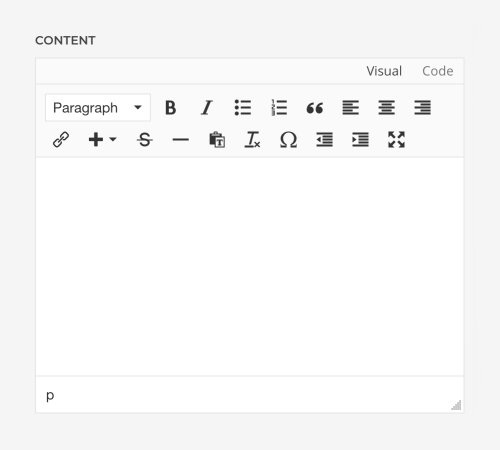

Field types editor

The following example shows only the code editor with syntax highlighting for CSS.

{
    "label": "Code Editor",
    "type": "editor",
    "editor": "code",
    "mode": "css",
    "attrs": {
        "debounce": 500
    }
}

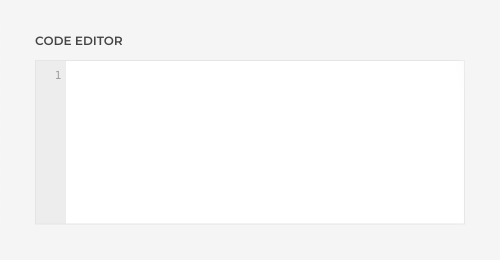

Field types code editor

Note To prevent the customizer preview from updating while typing in the editor, set the debounce attribute to around 500 milliseconds.

Select Field

The select field has the options and default properties for its options and the default value.

{
    "label": "Select",
    "type": "select",
    "default": 0,
    "options": {
        "Option 1": 0,
        "Option 2": 1,
        "Option 3": 2
    }
}

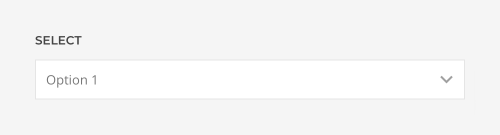

Field types select

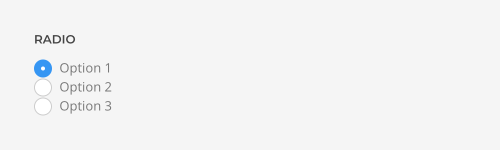

Radio Field

The radio field has the name, options and default properties for its name, options and the default value.

{
    "label": "Radio",
    "type": "radio",
    "name": "radio_group",
    "default": 0,
    "options": {
        "Option 1": 0,
        "Option 2": 1,
        "Option 3": 2
    }
}

Field types radio

Range Field

The range field has no additional properties, but it is necessary to set the min, max and step HTML attributes.

{
    "label": "Range",
    "type": "range",
    "attrs": {
        "min": 1,
        "max": 10,
        "step": 0.5
    }
}

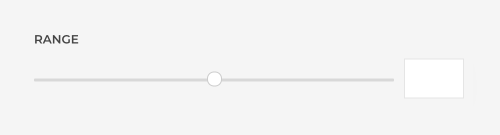

Field types range


Field Layouts

Some field types are only used to layout fields in the page builder and have no content themselves. They are typically used in the fieldset object. The containing fields are defined in a fields object.

Name Description
grid Arrange fields within a grid which share a description text below.
group Arrange fields compactly with label and controls side by side and the description text as tooltip.

Grid Field

The grid field has a width property to define the width for each grid cell.

"fields": {
    "image": {
        "label": "Image",
        "type": "image"
    },
    "width": {
        "label": "Width"
    },
    "height": {
        "label": "Height"
    }
},
"fieldset": {
    "default": {
        "fields": [
            "image",
            {
                "description": "A description text below the grid.",
                "type": "grid",
                "name": "_image_dimension",
                "width": "1-2",
                "fields": [
                    "width",
                    "height"
                ]
            }
        ]
    }
}

Note Inline field definitions in the fieldset object need a unique name. By default, the label property is used as fallback for the name. But if a field definition doesn't have a label like in the example above, a unique name must be set. We mark names which are not used anywhere with a _ prefix.

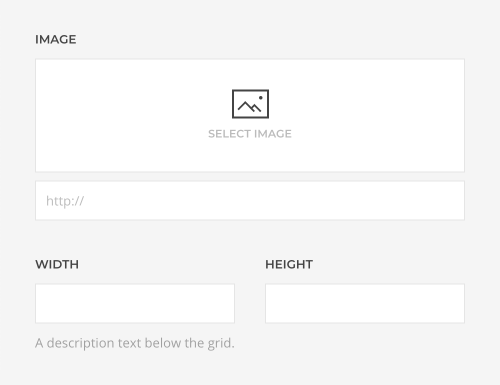

Grid with fields

Group Field

The group field has a divider property to set a divider at the bottom of the group.

"fields": {
    "content": {
        "label": "Content"
    },
    "option_a": {
        "label": "Select",
        "type": "select",
        "options": {
            "Option 1": 0,
            "Option 2": 1,
            "Option 3": 2
        }
    },
    "option_b": {
        "label": "Checkbox",
        "type": "checkbox",
        "text": "Some text"
    },
    "option_c": {
        "label": "Text"
    }
},
"fieldset": {
    "default": {
        "fields": [
            "content",
            {
                "label": "Group 1",
                "type": "group",
                "divider": true,
                "fields": [
                    "option_a",
                    "option_b"
                ]
            },
            {
                "label": "Group 2",
                "type": "group",
                "fields": [
                    "option_a",
                    "option_b"
                ]
            }
        ]
    }
}

Note Opposite to the grid field, groups usually have a label which is why a name doesn't have to be set.

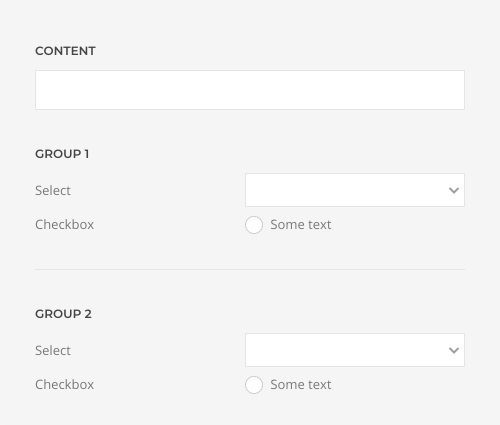

Group with fields


Template Files

The following variables are available when rendering an element node in the templates.

Variable Description
$node The element node (stdClass)
$props The element properties $node->props set using the fields (array)
$children The element children $node->children, for example items (array) of a multiple items element
$builder The current builder instance used to render children (YOOtheme\Builder)

Field Properties

All element fields defined in the element.json file can be accessed as properties using the $props variable. Their type is defined by the field type, or null if the user has not entered a value yet.

<?php

    // Properties
    $props['option_a'];    // String
    $props['option_b'];    // Integer
    $props['option_c'];    // Boolean

?>

<?php if ($props['title']) : ?>
<h3><?= $props['title'] ?></h3>
<?php endif ?>

<?php if ($props['content']) : ?>
<div><?= $props['content'] ?></div>
<?php endif ?>

Template Partials

Rendering the element layout is often split into template partials prefixed with template- using the helper function $this->render(). The following example renders the template-content.php file and passes the element properties $props.

<?= $this->render("{$__dir}/template-content", compact('props')) ?>

Template Engine

The YOOtheme Pro template engine provides an HTML helper function $this->el() to create HTML elements using a compact interpolation syntax for the $props variable. It also allows merging attributes easily.

Syntax Description
foo-{bar} Add foo-{bar} if $props['bar'] has a value and substitute {bar} with the value.
foo {@bar} Add foo if $props['bar'] has a value.
foo {@!bar} Add foo if $props['bar'] has no value.
foo {@bar: value} Add foo if $props['bar'] is set to value.
foo {@bar: value1|value2} Add foo if $props['bar'] is set to value1 or value2.
foobar [foo {@bar}] Add foobar and optionally add foo if $props['bar'] has a value.
<?php

// Create the wrapping element container
$el = $this->el('div', [
    'class' => [
        // Add two classes if the style has a value
        'uk-card uk-card-{style}',
        // Add a class if the style has no value
        'uk-panel {@!style}',
        // Add two classes if the style has a value, and add another class if the size has a value too
        'uk-card uk-card-{style} [uk-card-{size}]',
    ],
    'style' => [
        // Set the min-height if it has a value
        'min-height: {min_height}px',
    ],
    // Add the HTML attribute `uk-grid`
    'uk-grid' => true,
]);

// Create the wrapping content container
$content = $this->el('div', [

    'class' => [
        // Add a class if the style has a value
        'uk-card-body {@style}',
        // Add a size class like `uk-margin-small` if the margin size has a value, otherwise only add `uk-margin`
        'uk-margin[-{margin_size}]',
    ],

]);

?>

<?= $el($props, $attrs) // Render the opening HTML tag ?>

    <?php if ($props['content']) : ?>
    <?= $content($props, $props['content']) // Render the whole HTML element ?>
    <?php endif ?>

<?= $el->end() // Render the closing HTML tag ?>

There are severals arguments which are passed to the HTML element rendering.

Argument Type Description
$params array Pass the required element properties $props.
$attrs array Optionally, pass additional attributes to merge them. Attributes needed for the general and advanced element settings are stored in the attrs variable and should be passed to the element wrapping HTML element.
$contents mixed Optionally, pass any content, for example $props['content'], and the whole HTML element will get rendered.

Transforms and Updates

The optional element.php file extends the element functionality with custom transforms or update functions. It has to be imported through the element.json file.

{
    "@import": "./element.php",
    "name": "example",
    "title": "Example",
    "icon": "${url:images/icon.svg}",
    "iconSmall": "${url:images/iconSmall.svg}",
    "element": true,
    "width": 500,
    "templates": {
        "render": "./templates/template.php",
        "content": "./templates/content.php"
    }
}

Here is an example on how to define transforms and updates for the element node. It also shows which objects and parameters are available.

<?php

return [

    // Define transforms for the element node
    'transforms' => [

        // The function is executed before the template is rendered
        'render' => function ($node, array $params) {

            // Element object (stdClass)
            $node->type; // Type name (string)
            $node->props; // Field properties (array)
            $node->children; // All children (array)

            // Parameter array
            $params['path']; // All parent elements (array)
            $params['parent']; // Parent element (stdClass)
            $params['builder']; // Builder instance (YOOtheme\Builder)
            $params['type']; // Element definition (YOOtheme\Builder\ElementType)

        },

    ],

    // Define updates for the element node
    'updates' => [

        // The function is executed if the YOOtheme Pro version when the element was saved is smaller than the current version.
        '1.18.0' => function ($node, array $params) {

        },

    ],

];

Collapsing Layout

Make sure to prevent the element from rendering if its content fields are empty to behave according to the collapsing layout cascade.

return [

    'transforms' => [

        'render' => function ($node) {

            // Don't render the element if the title or content field is empty
            return $node->props['title'] || $node->props['content'];

        },

    ],

];

Mind that for a single content field, the return value has to be casted to a boolean.

return [

    'transforms' => [

        'render' => function ($node) {

            // Don't render element if the content field is empty
            return (bool) $node->props['content'];

        },

    ],

];

Updates

Define element updates for new versions of YOOtheme Pro.

return [

    'updates' => [

        '2.1.0-beta.1' => function ($node) {

            // Rename a field value
            if (@$node->props['width'] === 'xxlarge') {
                $node->props['width'] = '2xlarge';
            }

        },

        '1.20.2' => function ($node) {

             // Rename a field key
            if (isset($node->props['breakpoint'])) {
                $node->props['grid_breakpoint'] = $node->props['breakpoint'];
                unset($node->props['breakpoint']);
            }

        },

    ],

];

Note Currently element updates are tied to the updates of YOOtheme Pro. They don't have their own version numbers and can only be updated when the YOOtheme Pro version number changes.


Content Items

Elements which have content items, like the Grid element, are parent elements which contain child elements. To create a parent element, set the container property to true in the element.json file. To add a field which shows an interface to manage the content items, use the content-items field type and set the item property to the name of the child element.

{
    "name": "example",
    "title": "Example",
    "icon": "${url:images/icon.svg}",
    "iconSmall": "${url:images/iconSmall.svg}",
    "element": true,
    "container": true,
    "width": 500,
    "templates": {
        "render": "./templates/template.php",
        "content": "./templates/content.php"
    },
    "fields": {
        "content": {
            "label": "Items",
            "type": "content-items",
            "item": "example_item"
        }
    },
    "fieldset": {
        "default": {
            "fields": [
                "content"
            ]
        }
    }
}

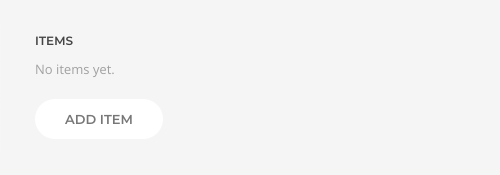

Multiple items element with no content items

Just like any other element a child element has its own directory, JSON configuration with a unique element name and template files. It's not shown in the element library which is why it also has no icons. Typically a child element also has an advanced setting tab which is the same across all child elements. Its fields order and layout are referenced from the the builder.json file.

{
    "name": "example_item",
    "title": "Item",
    "width": 500,
    "templates": {
        "render": "./templates/template.php",
        "content": "./templates/content.php"
    },
    "fields": {
        "title": {
            "label": "Title",
            "source": true
        },
        "content": {
            "label": "Content",
            "type": "editor",
            "source": true
        },
        "image": {
            "label": "Image",
            "type": "image",
            "source": true
        },
        "status": "${builder.statusItem}",
        "source": "${builder.source}"
    },
    "fieldset": {
        "default": {
            "type": "tabs",
            "fields": [
                {
                    "title": "Content",
                    "fields": [
                        "title",
                        "content",
                        "image"
                    ]
                },
                "${builder.advancedItem}"
            ]
        }
    }
}

The child element should have at least a title field and an optional image field. Both will be shown in the list of content items created by the content-items field in the parent element.

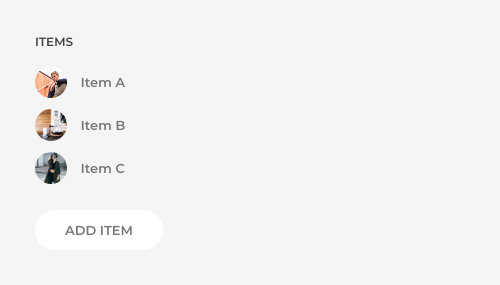

Multiple items element with content items

Template Files

All child elements can be accessed with the $children array and rendered using the helper function $builder->render().

<?php foreach ($children as $child) : ?>
<?= $builder->render($child, ['element' => $props]) ?>
<?php endforeach ?>

Typically the $props variable of the parent element is passed as $element to the child element, so all fields of the parent element can be accessed in template files of the child element.

<?php

    // Property of the parent element
    $element['option_a'];

?>

Add Media Button

By default, the content-items field shows an Add Item button to create a new content item. Optionally, add an Add Media button which allows picking images in the media manager. For each selected image, a new item is created. The image and title fields are automatically filled out.

Simply define the media object and set its type property to image. Use the item object to define to which fields the image title and src are set.

"fields": {
    "content": {
        "label": "Items",
        "type": "content-items",
        "item": "example_item",
        "media": {
            "type": "image",
            "item": {"title": "title", "image": "src"}
        }
    }
},
"fieldset": {
    "default": {
        "fields": [
            "content"
        ]
    }
}

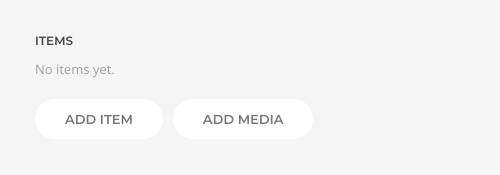

Content items with add media button

Preview Placeholder

Elements can show placeholder items in the page builder preview while they have no content items. Once a content item is added, the placeholder items disappear, and the content item is shown. Simply set the placeholder items in the placeholder object under children in the element.json file. Create an object for each placeholder item by setting the type property to the name of the child element.

"placeholder": {
    "children": [
        {"type": "example_item", "props": {}},
        {"type": "example_item", "props": {}},
        {"type": "example_item", "props": {}}
    ]
},
"fields": {
    "content": {
        "label": "Items",
        "type": "content-items",
        "item": "example_item"
    }
},
"fieldset": {
    "default": {
        "fields": [
            "content"
        ]
    }
}

Make sure placeholders are defined in the child element.

"placeholder": {
    "props": {
        "title": "Title",
        "content": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua."
    }
}

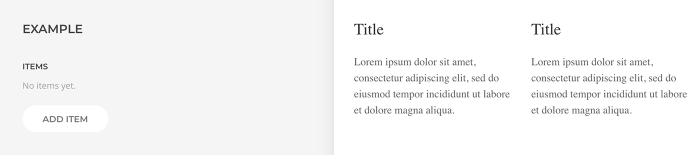

Content items with placeholder

If necessary, different placeholder values for fields of the placeholder item can be set in the props object.

"placeholder": {
    "children": [
        {"type": "example_item", "props": {"position_x": 20, "position_y": 50}},
        {"type": "example_item", "props": {"position_x": 50, "position_y": 20}},
        {"type": "example_item", "props": {"position_x": 70, "position_y": 70}}
    ]
}
YOOtheme Pro Documentation
